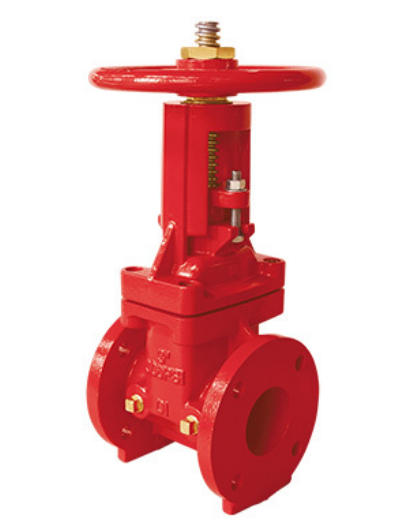

300PSI OS&Y Gate Valve(Rising Gate Valve)

300PSI OS&Y Gate Valve(Rising Gate Valve) Technical Features *Nominal Pressure: 300PSI *Flange Standard: ASME/ANSI B16.1 Class 125 or ASME/ANSI B16.42 Class 150 or BS EN1092-2 PN16 or GB/T9113.1 *Face to Face Standard: ASME B16.10. *Sizes: 2",2½", 3", 4", 5”, 6", 8", 10", 12" with FM UL CUL 14", 16" with FM only *Approvals: FM,UL, CUL, NSF/ANSI 61 & NSF/ANSI 372 *Maximum Working Pressure: 200 PSI (Maximum Testing Pressure: 400 PSI) conforms to UL 262, ULC/ORD C262-92 , FM class 1120 / 1130. *Maximum Working Temperature:80°C / 176°F *Coating Details:Epoxy coated interior and exterior by Electrostatic Spray or Coating upon request *Certified lead-free by NSF/ANSI 61 & NSF / ANSI 372 is available.
